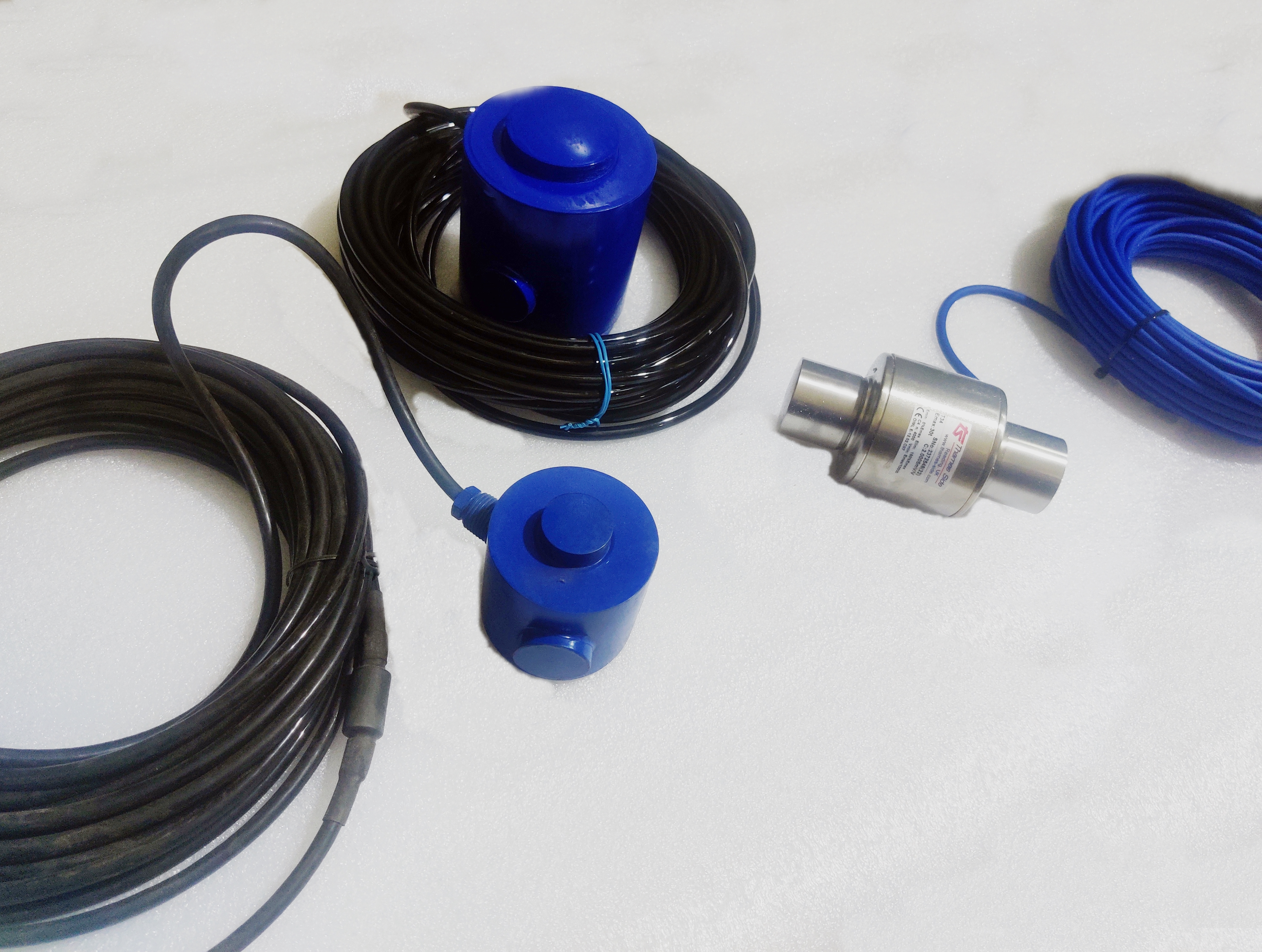

TECHNICAL SPECIFICATION

  • TYPE:-
    Double Ended Shear beam / Compression type
  • Safe Over Load:-
    150% RL
  • Ultimate Overload:-
    300% RL
  • Non Repeatability:-
    < ± 0.010% FSO
  • Hysteresis:-
    < ± 0.020% FSO
  • Creep (after 30 min):-
    < ± 0.020% FSO in 30 min
  • Protection:-
    IP68 and IP69 and IP69K
  • Sensitivity:-
    Very High (3mV/V)
  • Excitation Voltage:-
    10V DC Nominal
  • Side Load:-
    Discrimination : 500:1
  • Bridge Resistance:-
    700 Ohms (nominal)
  • Insulation Resistance:-
    > 1000 Meg Ohms at 50 V DC
  • Temp. Range:-
    -20 Deg Centigrade to +70 Deg Centigrade
  • Combined Error:-
    Lesser Than + 0.025%
  • Non Linearity:-
    < ± 0.025% FSO
  • Integral Cable:-
    4 core, 6 mtrs.
  • Lighting Protection:-
    In-Built (Gas Discharge Tube)
